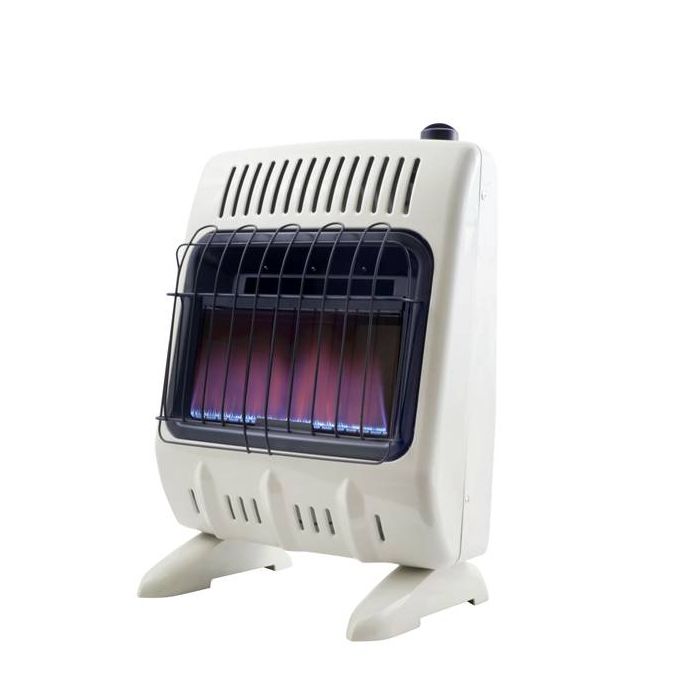

10,000 BTU Vent Free Blue Flame Series

Model: HSVFB10NG / HSSVFBF10LPT
Heatstar Vent-Free Heaters come in radiant or blue flame indoor safe wall-mountable heaters that run off of either propane (F156011) or natural gas (F155550).
Grouped product items
Item #Product Name
F15555010,000 BTU Vent Free Blue Flame Natural Gas Heater
F15601110,000 BTU Vent Free Blue Flame Propane Heater with Thermostat
F273684Remote Propane Vent Free Installation Kit
F273863Two Stage Propane Regulator
F2762623/8in Male Pipe Thread x 3/8in Male Flare Brass Fitting
F2730715ft Propane Hose and Regulator Assembly
F27307212ft Propane Hose Assembly
F27123924-in Universal Gas Appliance "Hook-Up" Kit
This Blue Flame 10,000 BTU Vent Free heater is the perfect supplemental heating solution even on the coldest days. It is equipped with a multi-output valve for easy temperature regulation and a convenient Piezo ignition built right into the rotation of the knob for one handed ignition. This unit can be permanently mounted to the wall or securely fastened to the floor with included mounting brackets and fasteners. A clean burning blue flame tube burner uses the natural convection of the burn to circulate warm comfortable air. With a factory standard Oxygen Depletion Sensor (ODS), rest assured this heater will provide you with years of comfortable and safe heat.
  • 10,000 BTU per hour
  • For use with natural gas or propane
  • Heats up to 300 sqft
  • Blue flame burner for even convection heat
  • Automatic low oxygen shut-off system (ODS)
  • Legs and wall mounting hardware included

Click on the links below to download product manuals, including schematics, or schematics alone. Please check the download size before downloading on your mobile.

pdf
(Size: 544.6 KB)
2019 L242
More Information
Weight10
Heating Area (Sq Ft)300
Thermostat OptionalNG (not included) LP (included)
Fuel TypeNatural Gas or Propane
Burner TypeBlue Flame
Blower/FanNo
Air Volume (CFM)Not Applicable
IgnitionPiezo
Clearance to Combustibles: HorizontalAbove 36in; Below 36in; Sides 10in
Mounting Height RangeSuggested 36in from Floor for Accessibility
Mounting OptionsWall Mount and Feet Kits Included
Item Length (in)18.5
Item Width (in)11.25
Item Height (in)22.75
Item Weight (lb)19.48
Warranty5 Year Limited
ModelHSVFB10NG / HSSVFBF10LPT

Download Prop 65 Statement

Country Restriction: Canada
State Restriction: California
