125,000 BTU Comforter Series
Model: HSAG125NG /HSAG125LP
COMFORTER Burner Boxes, fueled by either propane (F102657AG) or natural gas (F102656AG), provide low intensity, infrared heat.
| Item # | Product Name |
|---|---|
| F102656AG | 125,000 BTU COMFORTER Natural Gas Burner Box |
| F102657AG | 125,000 BTU COMFORTER Propane Burner Box |
| F106406AG | 100,000-125,000 BTU COMFORTER 40ft Tube Set |
| 11780 | Conversion Kit 125,000 BTU Comforter NG to LP |
| 11781 | Conversion Kit 125,000 BTU Comforter LP to NG |
| F106414 | 180 Degree U Tube |
| F111756 | Air Intake Kit |

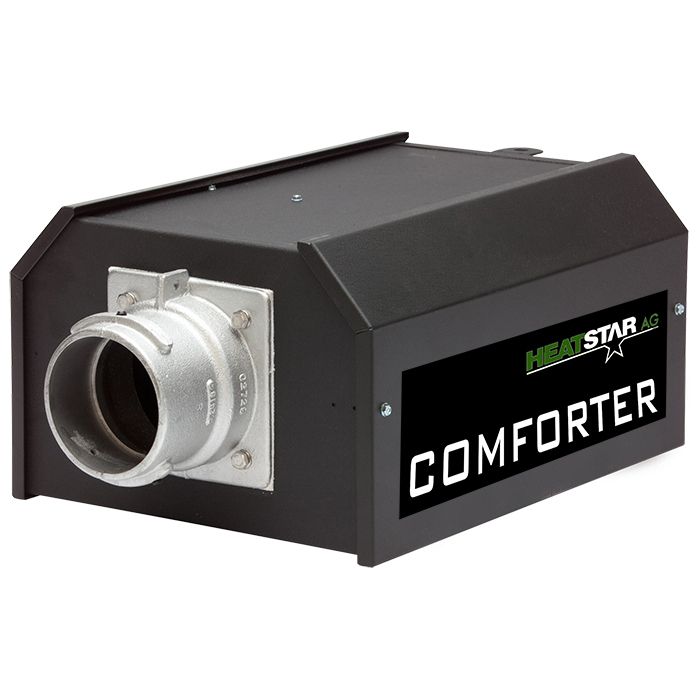

This is a 125,000 BTU COMFORTER Burner Box fueled by propane or natural gas. It provides low intensity, gentle heat directly towards floor-level objects, which in turn, heat surrounding air to desired temperature. This is done in a wide footprint along the length of the tube. This Burner Box has proven performance in agricultural settings like poultry and swine barns. Because the heat energy is transferred efficiently and evenly to the floor, COMFORTER is a great choice for keeping chicks at the feeder and drinker! The broad footprint offered by this heater makes it more efficient than round radiant brooders.
- Gasket Sealed Burner Control Box
- Powder Coat Painted
- Outside or Inside Air for Combustion
- Heavy Duty Cast Iron Tube Flange, Corrosion and Flame Resistant
- Direct Spark Ignition
- Honeywell Smart Valve
- 1 Year Limited Warranty
Click on the links below to download product manuals, including schematics, or schematics alone. Please check the download size before downloading on your mobile.
| Electrical Rating | 120V |
|---|---|
| Electrical Connection | Pigtail Leads in Junction Box |
| Gas Inlet Connection | 1/2in ID FPT |
| Mounting Height Range | 14ft - 19ft |
| Clearance to Combustibles: Horizontal | Above 6in; Below 87in; Sides 36in |
| Venting: Length Min/Max | 25ft |
| Venting: Exhaust | 25ft |
| Venting: Air Intake | 25ft |
| Thermostat Optional | Optional |
| Fuel Type | Natural Gas or Propane |
| Ignition | Direct Spark |
| Weight | 33.9 |
| Warranty | 1 Year Limited |
| Certification | CSA certified versions available |
| Model | HSAG125NG /HSAG125LP |
Download Prop 65 Statement
