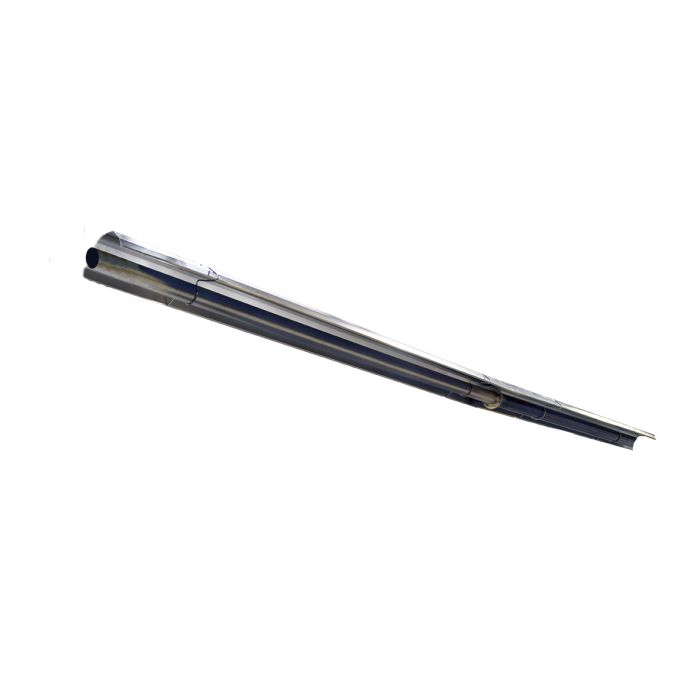

Tube Set - 20ft for JET20
SKU
F106020
This JET20 Tube Set are designed for use exclusively with JET 80,000 BTU Burner Boxes. When used in broiler houses, the JET20 System provides the most even floor heat available from a 20ft heater.
- 16-Gauge 3in Round Tubes, First 10ft
- 16-Gauge 3.5in Round Tubes, Second 10ft
- Full Cover Polished Aluminum Reflector
- 2 Year Limited Warranty
- Outside or Inside Air for Combustion
- Installs easily as Straight or U-Tube Configuration
The JET20 is a 20ft tube set intended for use with the JET 80,000 BTU Burner Box. It is uniquely comprised of a 3in round x 10ft aluminized steel first tube, transitioning to a 3.5in round x 10ft hot rolled steel tube for the last 10ft. Combined with the 10ft flame produced by the JET Burner Box, this system provides the most even heat along its 20ft length of any AG heater on the market. JET tube sets come with tubes, polished aluminum reflectors, hangers, couplers, ventcap, drip-line flex gas supply line chains and turbulator.
Click on the links below to download product manuals, including schematics, or schematics alone. Please check the download size before downloading on your mobile.
| Weight | 112 |
|---|---|
| Item Length (in) | 124 |
| Item Width (in) | 18 |
| Item Height (in) | 12 |
| Item Weight (lb) | 85 |
| Tube Diameter | 4in |
| Venting: Exhaust | 25ft Max |
| Mounting Height Range | 10ft - 14ft |
| Warranty | 2 Year Limited |
Download Prop 65 Statement
