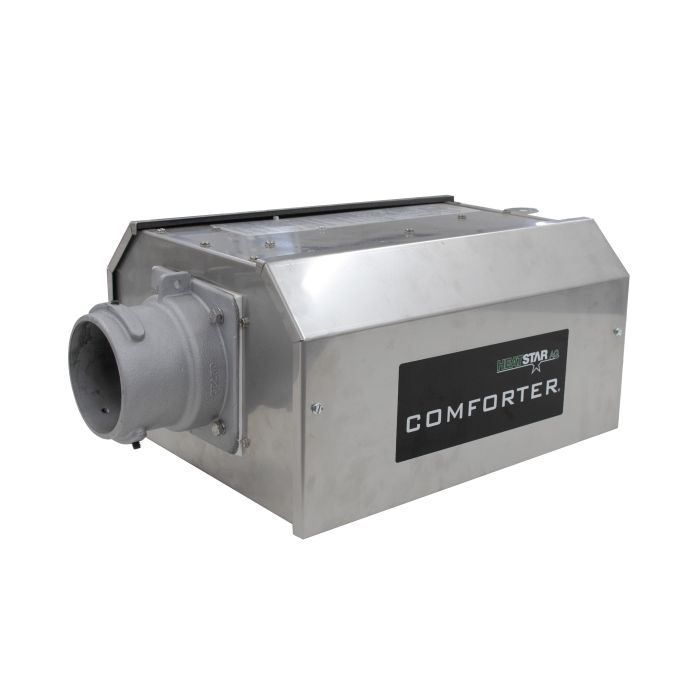

60,000 BTU COMFORTER® Stainless Steel Natural Gas Burner Box

SKU
F102650SS

COMFORTER Stainlesss Steel Burner Boxes, fueled by either Propane or Natural Gas, provide low intensity, infrared heat. Because the heat energy is transferred efficiently and evenly to the floor, COMFORTER is a great choice for keeping chicks at the feeder and drinker!

  • Gasket Sealed Burner Control Box
  • Powder Coat Painted
  • Outside or Inside Air for Combustion
  • Heavy Duty Cast Iron Tube Flange, Corrosion and Flame Resistant
  • Direct Spark Ignition
  • Honeywell Gas Valve
  • 1 Year Limited Warranty

This is a 60,000 BTU COMFORTER Burner Box fueled by Natural Gas. It provides low intensity, gentle heat directly towards floor-level objects, which in turn, heat surrounding air to desired temperature. This is done in a wide footprint along the length of the tube. This Burner Box has proven performance in agricultural settings like poultry and swine barns. Because the heat energy is transferred efficiently and evenly to the floor, COMFORTER is a great choice for keeping chicks at the feeder and drinker! The broad footprint offered by this heater makes it more efficient than round radiant brooders.

Click on the links below to download product manuals, including schematics, or schematics alone. Please check the download size before downloading on your mobile.

More Information
Electrical Rating120V
Electrical ConnectionPigtail Leads in Junction Box
Item Length (in)27.25
Item Width (in)14.5
Item Height (in)10.75
Gas Inlet Connection1/2in ID FPT
Gas Inlet Pressure Min4in - 6in WC
Gas Inlet Pressure Max14in WC
Mounting Height Range14ft - 19ft
Clearance to Combustibles: HorizontalAbove 6in; Below 55in; Sides 30in
Venting: Length Min/Max25ft
Venting: Exhaust25ft Max
Venting: Air Intake25ft
Thermostat OptionalOptional
Fuel TypeNatural Gas
IgnitionDirect Spark
Weight33.9
Warranty1 Year Limited

Download Prop 65 Statement
