80,000 BTU JET20 Single Stage Series

Model: JET20NG / JET20LP

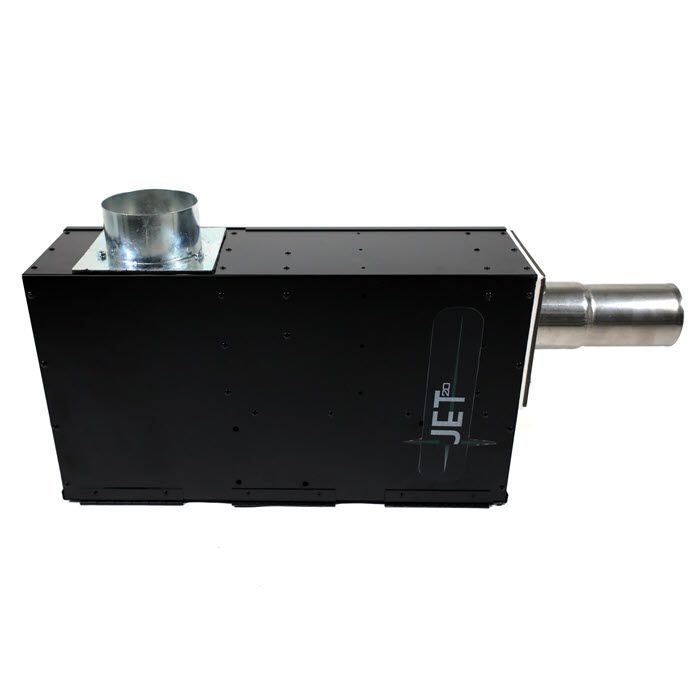

This JET Burner Box (Natural Gas - F102080 / Propane - F102085) produces a unique 10ft "jet-like" flame and it is designed for use exclusively JET20 Tube Sets (F106020) in poultry house settings.
Grouped product items
Item #Product Name
F10208080,000 BTU Natural Gas JET Single Stage Burner Box
F10208580,000 BTU Propane JET Single Stage Burner Box
F106021JET20™ OPTIMIZER™ Tube Set
F106020Tube Set - 20ft for JET20
11772Conversion Kit 80,000 BTU JET NG to LP
11773Conversion Kit 80,000 BTU JET LP to NG
17370Hanging Chain Kit for Tube Heaters
F111756Air Intake Kit
This JET 80,000 BTU Burner Box produces a unique 10ft "jet-like" flame that transfers heat most evenly of any tube heating system of this length. In turn, this heater offers the most even floor footprint in a 20ft length and 15-20ft throw in poultry house settings. This results in a wide footprint along the entire length of the tube. Because the heat energy is transferred efficiently and evenly to the floor, JET Heaters are a great choice for keeping chicks at the feeder and drinker! The JET Series provides the most even floor heating system on the market for poultry installations.
More Information
Electrical Rating120V
Electrical ConnectionPigtail Leads in Junction Box
Gas Inlet Connection1/2in ID FPT
Mounting Height Range9ft - 12ft
Clearance to Combustibles: HorizontalAbove 12in; Below 55in; Sides 36in
Venting: Length Min/Max2ft - 3ft
Venting: Exhaust0ft
Venting: Air Intake30ft
Thermostat OptionalOptional
Fuel TypeNatural Gas or Propane
IgnitionHot Surface
Warranty1 Year Limited
ModelJET20NG / JET20LP
