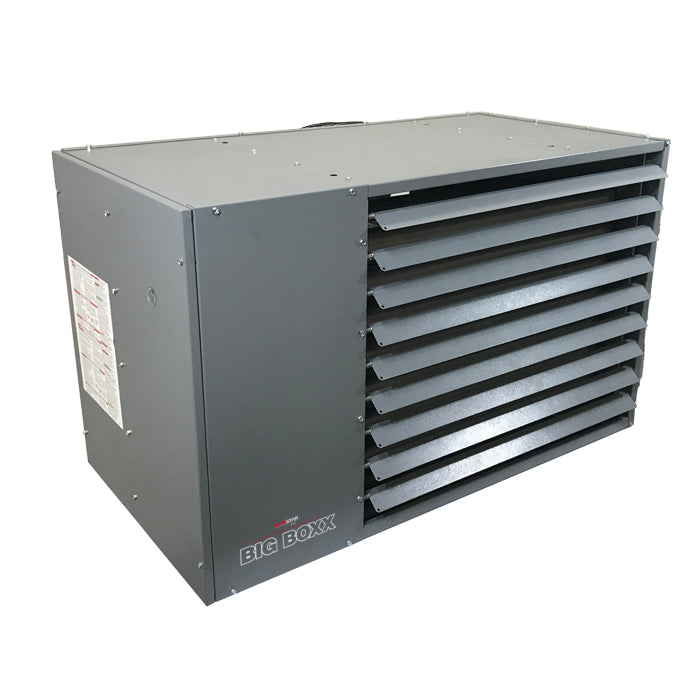

200,000 BTU Power Vented Stainless Steel Heat Exchanger Unit Heater
The HeatStar 200,000 BTU Power Vented Unit Heater provides big heat for big spaces. With 200,000 BTU heat, the heater spreads warmth through factories or warehouses up to 6,700 sq ft. A fan pulls air from the room to be heated, and the power vent system pumps exhaust out of the building through a single vent pipe. The design minimizes labor and makes for easy installation. Air louvers with three locking positions control the direction of the heat. Work in warmth with the HeatStar 200,000 BTU Power Vented Unit Heater.
- Power vented units
- Powder coated cabinet
- 82% thermal efficiency
- Air louvers with 3 locking positions
- All models ship equipped for natural gas
- (LP conversion kit sold separately)
- Easily installs using 3/8-in -16 threaded rods (sold separately)
- 3 Year Limited Warranty on parts
- (Limited to 1 year in high humidity or caustic environments)
- 10 Year Limited Warranty on aluminized steel heat exchanger
- (Limited to 5 years when installed in corrosive environments)
- 10 Year Limited Warranty on stainless steel heat exchanger
Weight: 212
Input BTU: 200,000
Heating Area (Sq Ft): 6,700
Electrical Rating: 110 vac
Gas Inlet Connection: 1/2in
Gas Inlet Pressure Min: 3.5in WC
Gas Inlet Pressure Max: 14in WC
Clearance to Combustibles: Horizontal: Above 6in; Behind 18in; Sides 6in
Venting: Length Min/Max:
Venting: Exhaust: 4in Diameter
Venting Direction:
Heat Exchanger: Stainless Steel Tubing
Thermostat Optional: Not Applicable
Fuel Type: Natural Gas
Ignition: Electronic
Item Length (in): 35
Item Width (in): 40.5
Item Height (in): 26.3
Item Weight (lb): 212
Warranty: 10 year limited on stainless steel heat exchanger (only applies to Tectoral units)
Model: HSU200NGPSSP
