By HeatStar

30,000 BTU Restaurant/Patio Natural Gas High Intensity Radiant Heater

Find a Distributor
Regular price $9,999.00
Regular price $0.00 Sale price $9,999.00

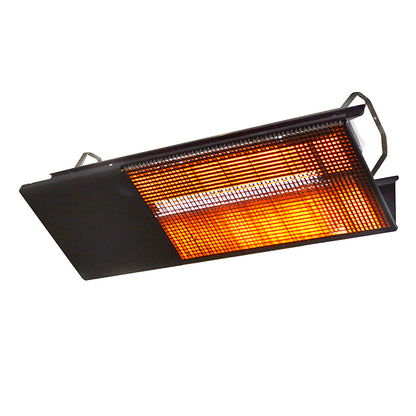

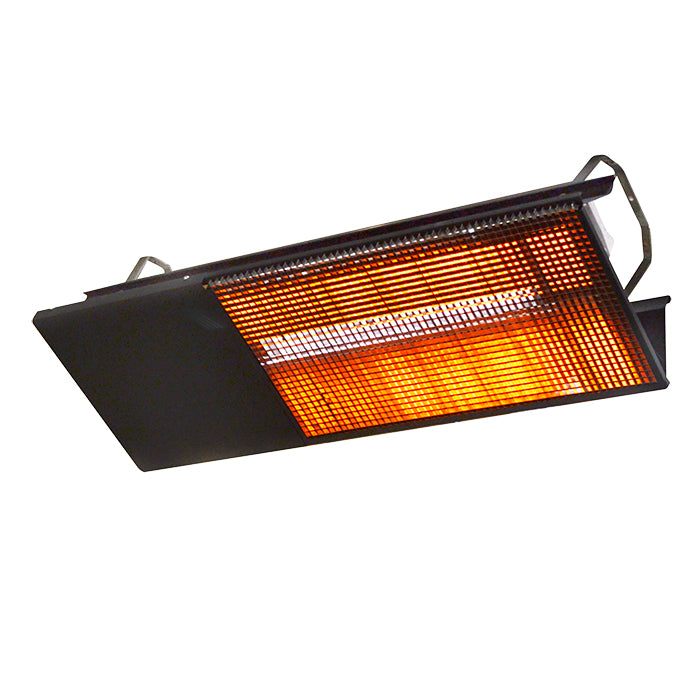

The 4000 Series High Intensity Overhead Restaurant/Patio heater comes fully assembled and painted a low gloss black. It is designed for use on patios, at restaurants and generally where overhead heating is needed in windy and cool conditions. Infrared heaters direct line of site radiant heat, like the sun's rays, to floor-level objects, which in turn, heat surrounding air to the desired temperature. Personnel and objects at floor level enjoy instant, cost-saving comfort. The decorative black color is designed to blend in so these heaters are only noticeable by the comfortable heat they provide. This specific model is equipped with Spark Ignition and operates fueled by natural gas. Mounting brackets for a 45° installation are included. It operates with 24V or 120V thermostats (sold separately.) It comes with a 3 year limited warranty on the burner assembly. If an aluminum colored unit is preferred, use the standard 4000 Series Heater and add the optional decorative kit (F104440).
Availability: Low stock: 1 left
SKU: F140625
Model:
HSRR30SPNG
Regular price $9,999.00
Regular price $0.00 Sale price $9,999.00

  • Heatstar Restaurant / Patio High Intensity Heaters have a black, satin gloss painted body and reflectors
  • Decorative grate protects burners from damage and act as a wind guard
  • Additional burner orifice is available that enables the installer to increase or decrease the output of the heater (optional orifice #05443, sold separately)
  • Spark ignition heaters ship with 120V 24V /40VA transformers

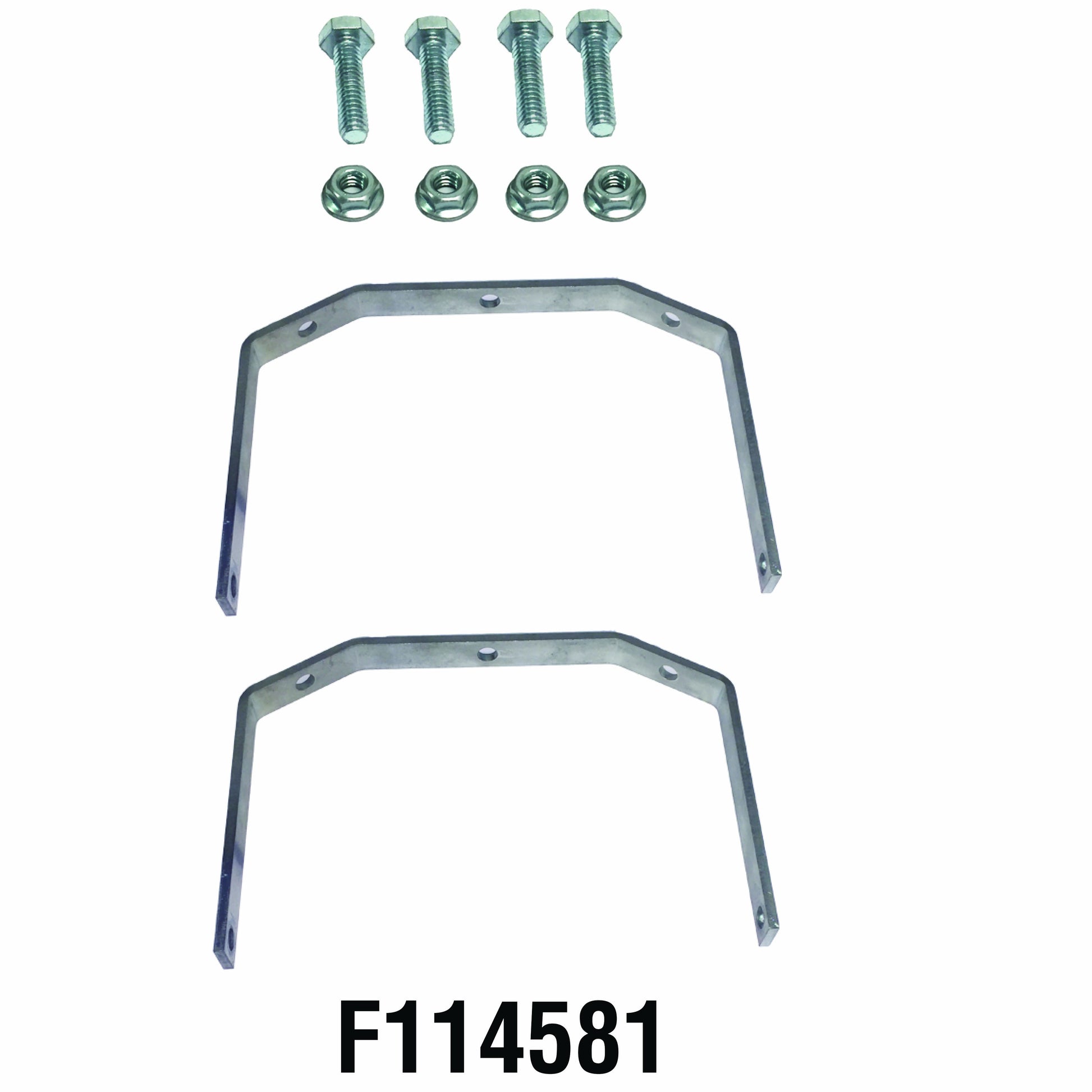

  • Mounts horizontal or at a 45 degree angle (brackets included)
  • Operates with 24V or 120V thermostats (not included)
  • No direct venting required
  • Corrosion resistant materials are used throughout heaters construction

Weight: 40

Fuel Type:
Natural Gas

Ignition:
Electronic

Electrical Rating:
120V / 60Hz

Electrical Connection:
Transformer

Transformer Included:
Yes

Gas Inlet Connection:
1/2in ID FPT

Gas Inlet Pressure Min:
6.6in WC

Gas Inlet Pressure Max:
11in WC

Mounting Height Range:
10ft - 12ft

Clearance to Combustibles: Horizontal:
Top 30in; Side 30in; Back 30in; Below 54in

Venting Required:
Not Required

Thermostat Optional:
Sold Separately

Item Length (in):
48.25

Item Width (in):
20.5

Item Height (in):
13.75

Item Weight (lb):
40

Warranty: Gas Control:
1 Year Limited

Warranty: Burner:
10 Year Limited Pro-Rated

Model:
HSRR30SPNG
