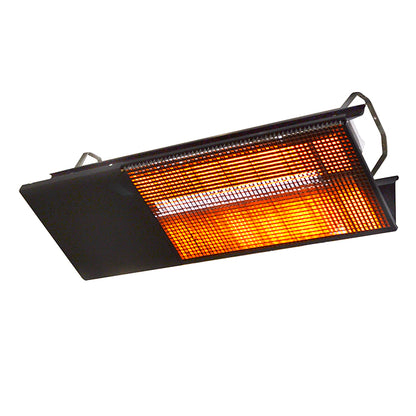

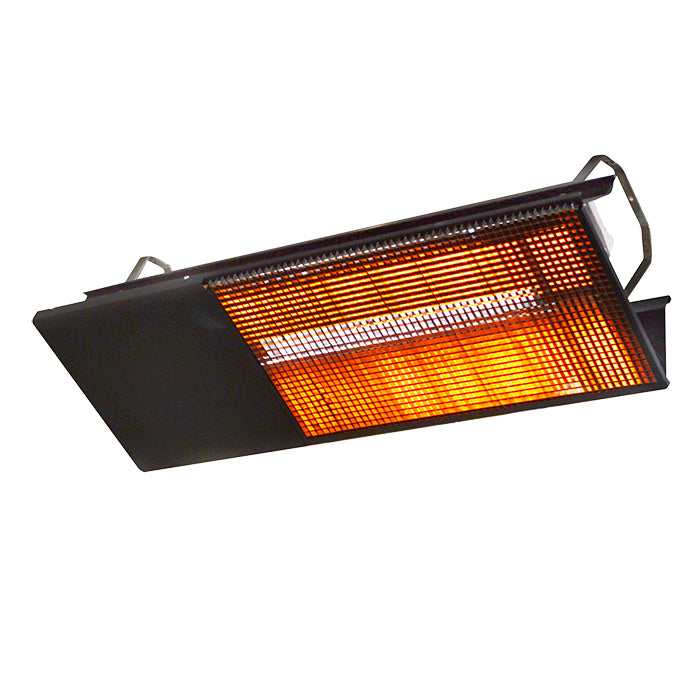

30,000 BTU Restaurant/Patio Propane High Intensity Radiant Heater

Find a Distributor
$9,999.00
$0.00 $9,999.00
Infrared Heaters direct line of site radiant heat to floor-level objects, which in turn, heat surrounding air to the desired temperature. Personnel and objects at floor level enjoy instant, cost-saving comfort.
Availability: Out of stock
SKU: F140627
Model:
HSRR30SPLP
$9,999.00
$0.00 $9,999.00

  • Additional burner orifice is available that enables the installer to increase or decrease the output of the heater (optional orifice #05443, sold separately)
  • Spark ignition heaters ship with 120V 24V /40VA transformers

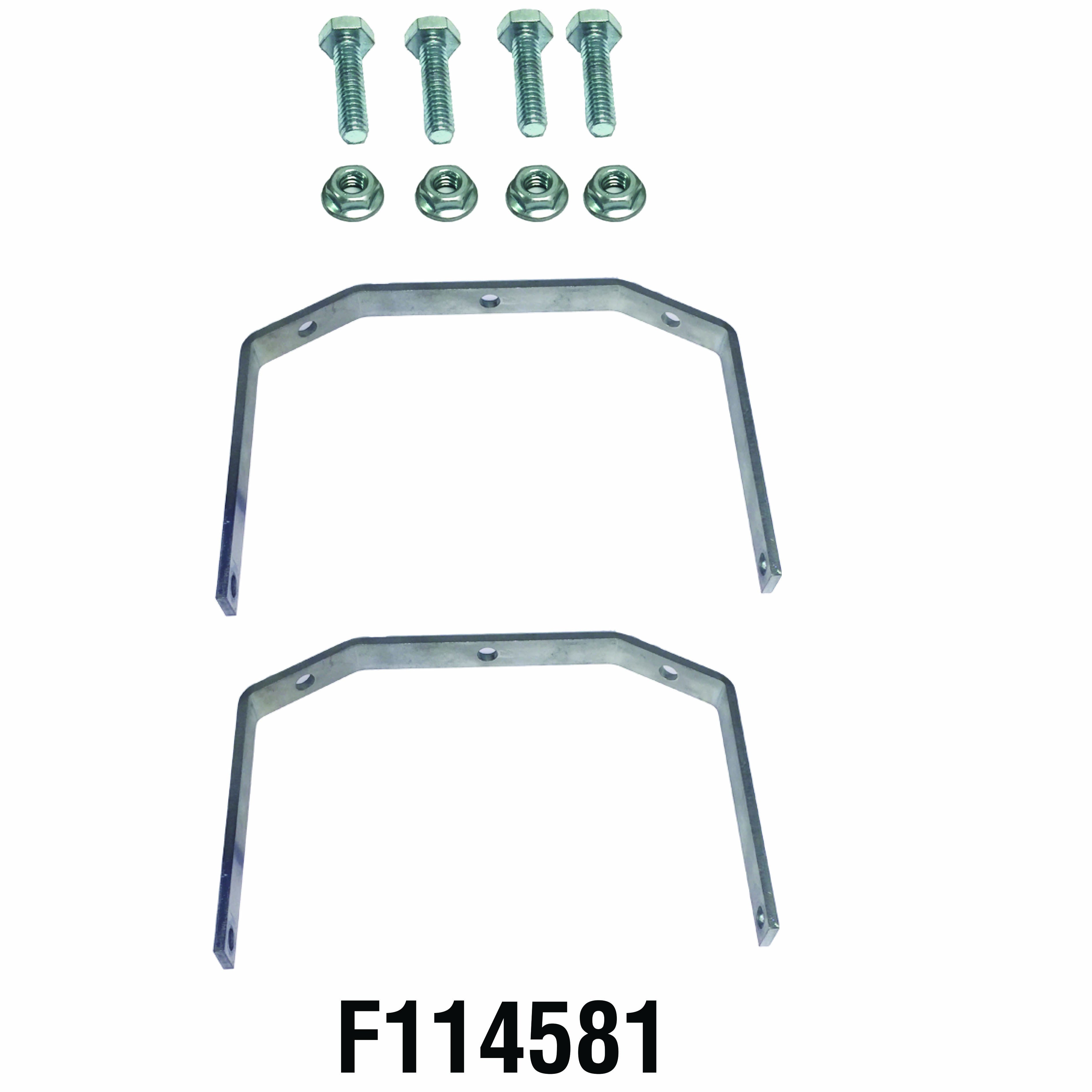

  • Mounts horizontal or at a 45 degree angle (brackets included)

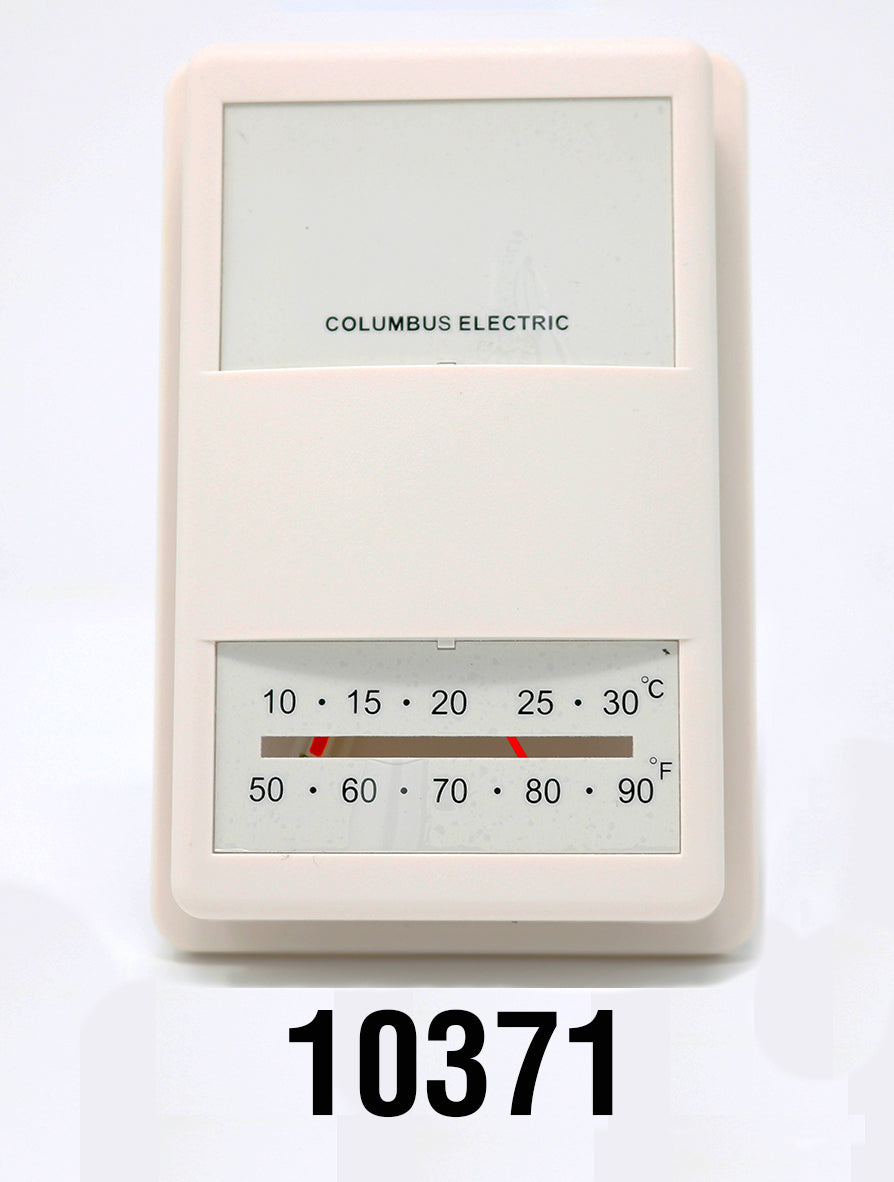

  • Operates with 24V or 120V thermostats (not included)
  • No direct venting required
  • Corrosion resistant materials are used throughout heaters construction

Weight: 40

Fuel Type: Propane

Ignition: Electronic

Electrical Rating: 120V / 60Hz

Electrical Connection: Transformer

Transformer Included: Yes

Gas Inlet Connection: 1/2in ID FPT

Gas Inlet Pressure Min:11in WC

Gas Inlet Pressure Max:14in WC

Mounting Height Range:10ft - 12ft

Clearance to Combustibles: Horizontal: Top 30in; Side 30in; Back 30in; Below 54in

Venting Required: Not Required

Thermostat Optional: Yes

Item Length (in):48.25

Item Width (in): 20.5

Item Height (in): 13.25

Item Weight (lb): 40

Warranty: Gas Control: 1 Year Limited

Warranty: Burner: 10 Year Limited Pro-Rated

Model: HSRR30SPLP
