By HeatStar

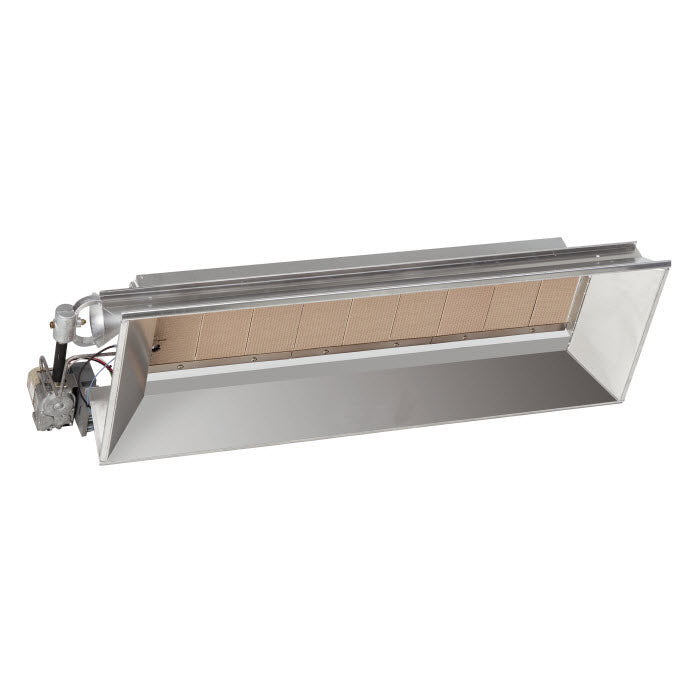

60,000 BTU Natural Gas High Intensity Radiant Power Pile Industrial Heater

Find a Distributor
Regular price $674.76
Regular price $0.00 Sale price $674.76
8000 Series Heaters arrive set up to operate at 60,000 BTU/hr. The box comes with a kit that enables user to convert the BTU setting to 50,000 or 70,000. Infrared Heaters direct line of site radiant heat to floor-level objects, which in turn, heat surrounding air to the desired temperature. High intensity heaters are ideal for use in drafty or windy conditions like a loading dock or auto mechanic bays where doors are open during winter conditions. Dock personnel and objects at floor level will benefit from comfortable warmth like the rays of the sun despite wind and cold. This particular heater uses Power Pile ignition and it is fueled by natural gas. It ships with a thermostat and no electricity or direct venting are required for operation. Heatstar high intensity heaters are protected by a 10 year, pro-rated burner assembly warranty and a limited one year gas control warranty. Consult the user manual for installation instructions and for clearance to combustible guidance.
Availability: Low stock: 3 left
SKU: F180626
Model:
HS8060PPNG
Regular price $674.76
Regular price $0.00 Sale price $674.76

  • Heatstar High Intensity Heaters have multiple outputs per model series
  • Additional burner orifices are included that enables the installer to increase or decrease the output of the heater
  • Spark ignition heaters ship with 40VA transformers
  • Milivolt control heaters shipped with thermostat
  • Non-corrosive materials are used throughout heaters construction

Input BTU: 60,000

Electrical Rating: Not Applicable

Gas Inlet Connection: 1/2in ID FPT

Gas Inlet Pressure Min: 7in WC

Gas Inlet Pressure Max: 14in WC

Clearance to Combustibles: Horizontal: Top 40in; Side 30in; Back 30in; Below 118in

Thermostat Optional: Yes

Fuel Type: Natural Gas

Ignition: Manual

Item Length (in): 48.25

Item Width (in): 20.25

Item Height (in): 13.5

Item Weight (lb): 36.15
