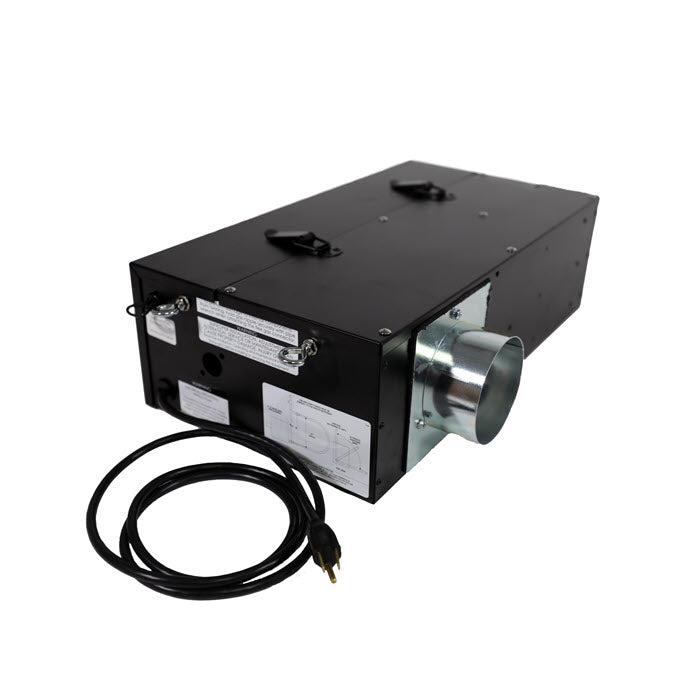

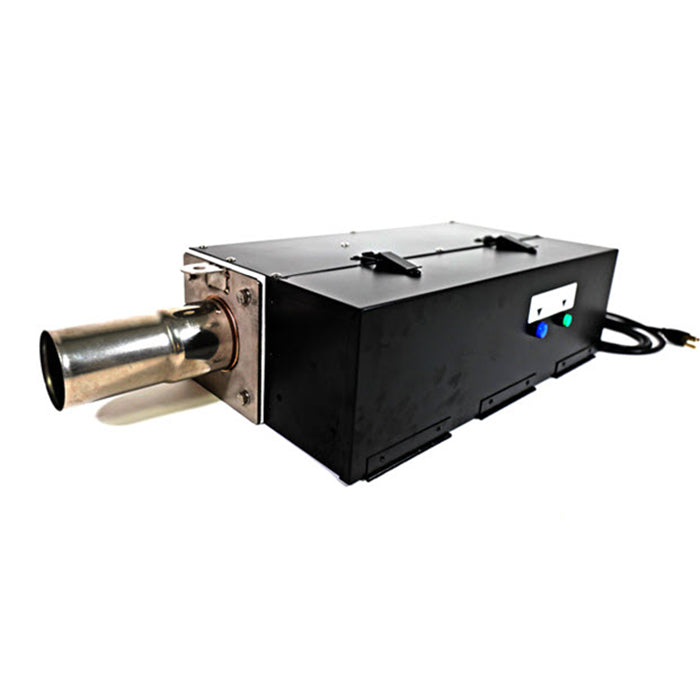

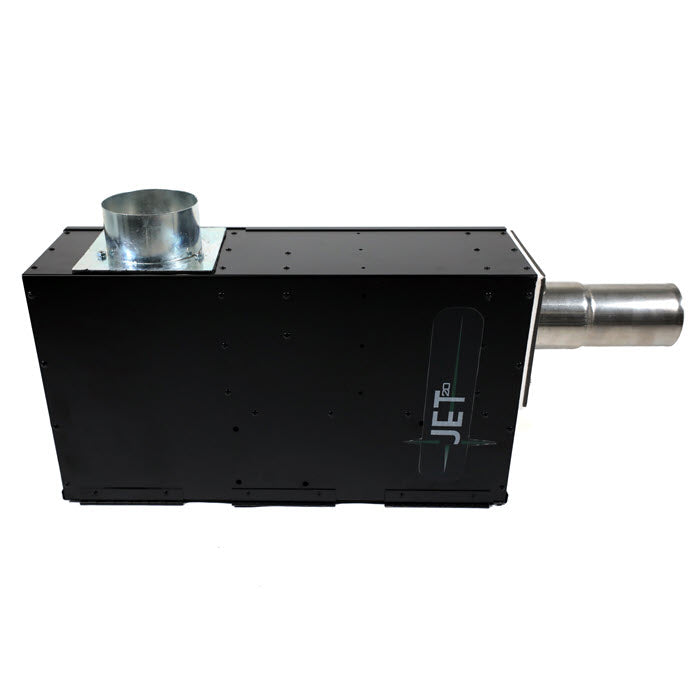

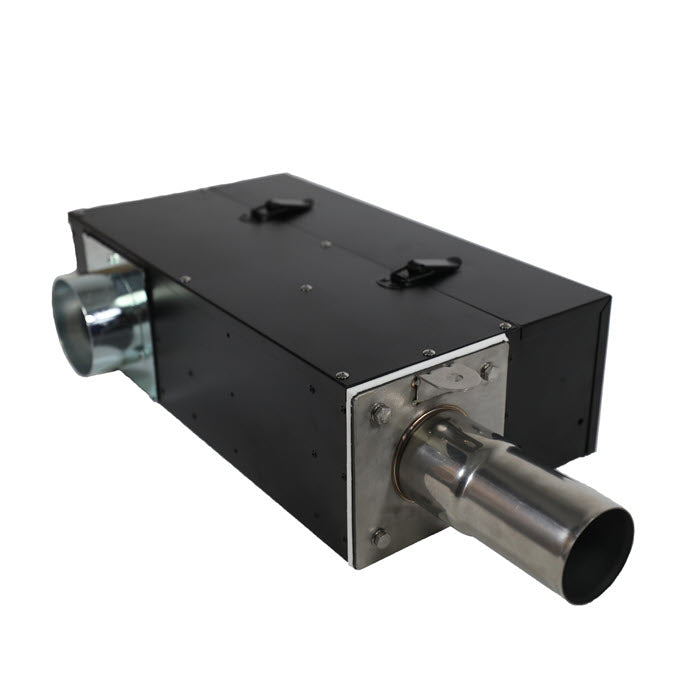

100,000 BTU Propane JET Single Stage Burner Box

Find a Distributor
Regular price $9,150.00
Regular price $0.00 Sale price $9,150.00

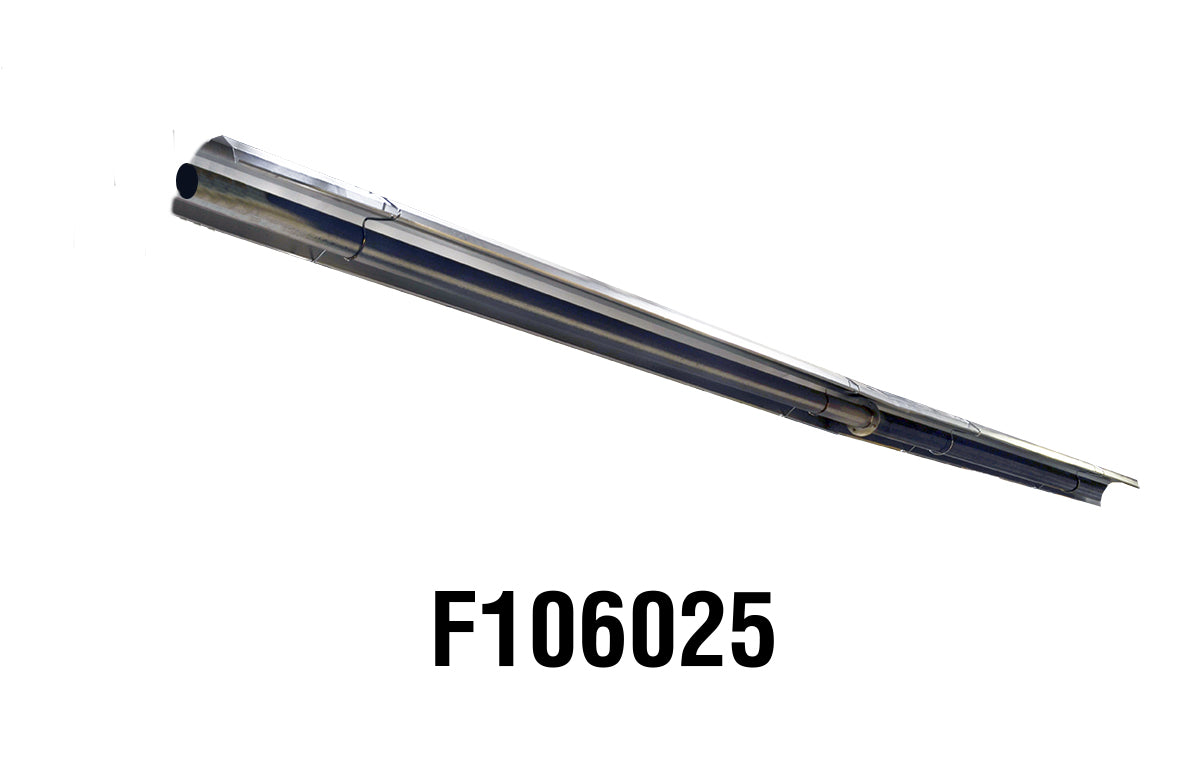

This JET 100,00 BTU Propane Burner Box produces a unique 10ft "jet-like" flame that transfers heat most evenly of any tube heating system of this length. In turn, this heater offers the most even floor footprint in a 25ft length and 15-20ft throw in poultry house settings. This results in a wide footprint along the entire length of the tube. Because the heat energy is transferred efficiently and evenly to the floor along a 25ft length, the JET25 Heater provides the most even floor heating system on the market for poultry installations with nearly 25% more efficiency than 20ft alternatives.
Availability: Out of stock
SKU: F102095
Model:
JET25LP
Regular price $9,150.00
Regular price $0.00 Sale price $9,150.00

  • Gasket Sealed Burner Control Box

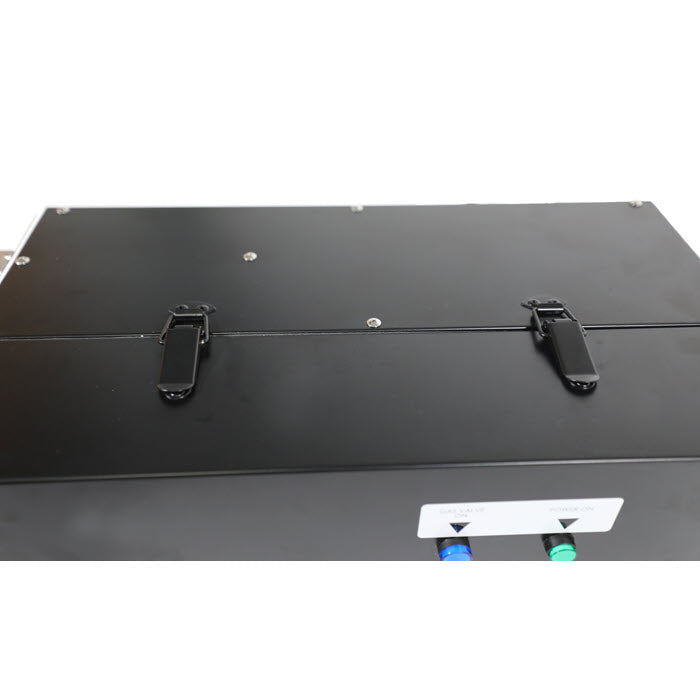

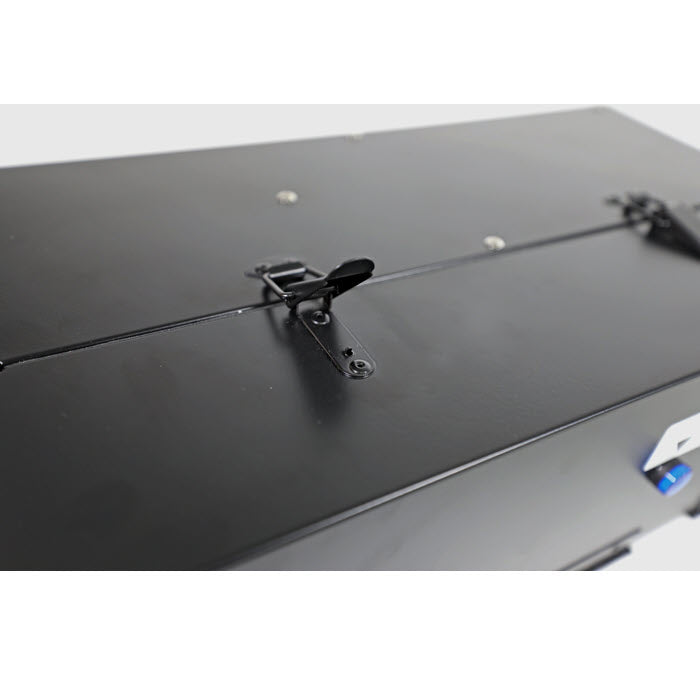

  • Hinged, Easy Access Side Panel Drops Open
  • Even Radiant Heating Dries Floor Shavings and Reduces Hot Spots
  • Fenwal Spark Ignition Module

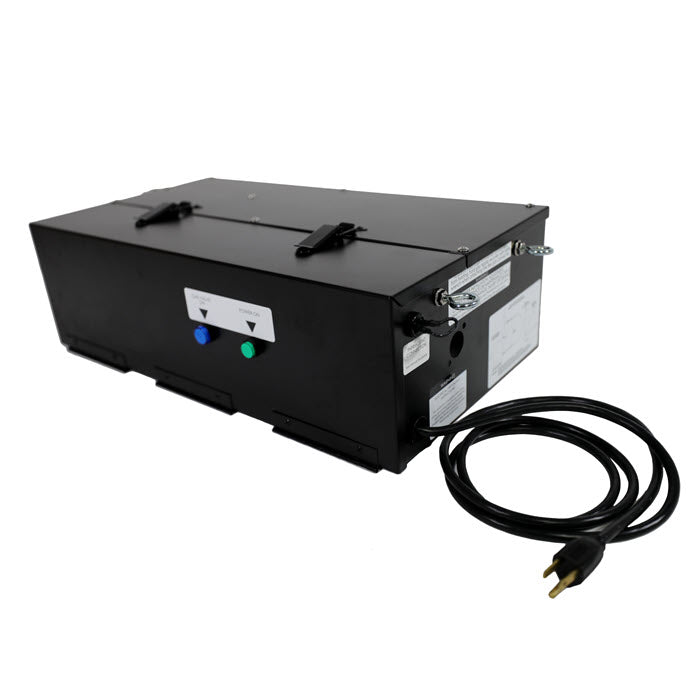

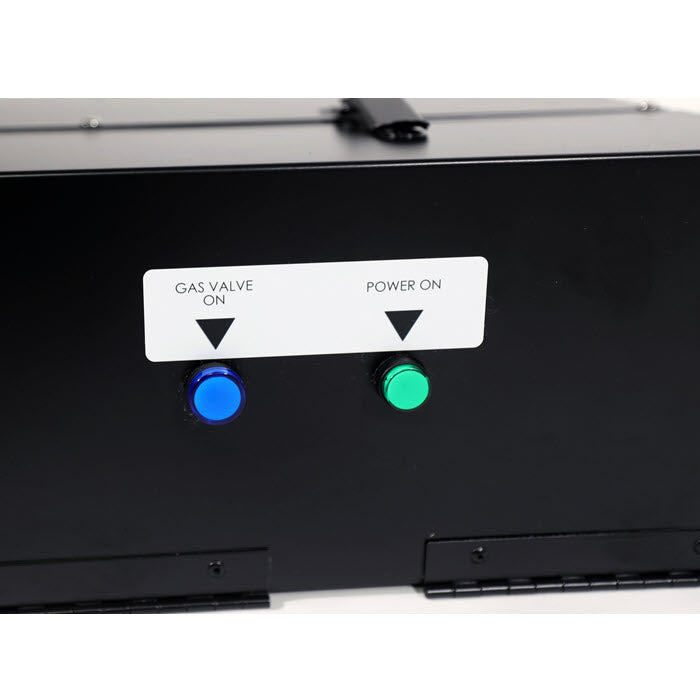

  • Diagnostic Lights Visible from Ground
  • 1 Year Limited Warranty

Electrical Rating: 120V

Electrical Connection: Pigtail Leads in Junction Box

Gas Inlet Connection: 1/2in ID FPT

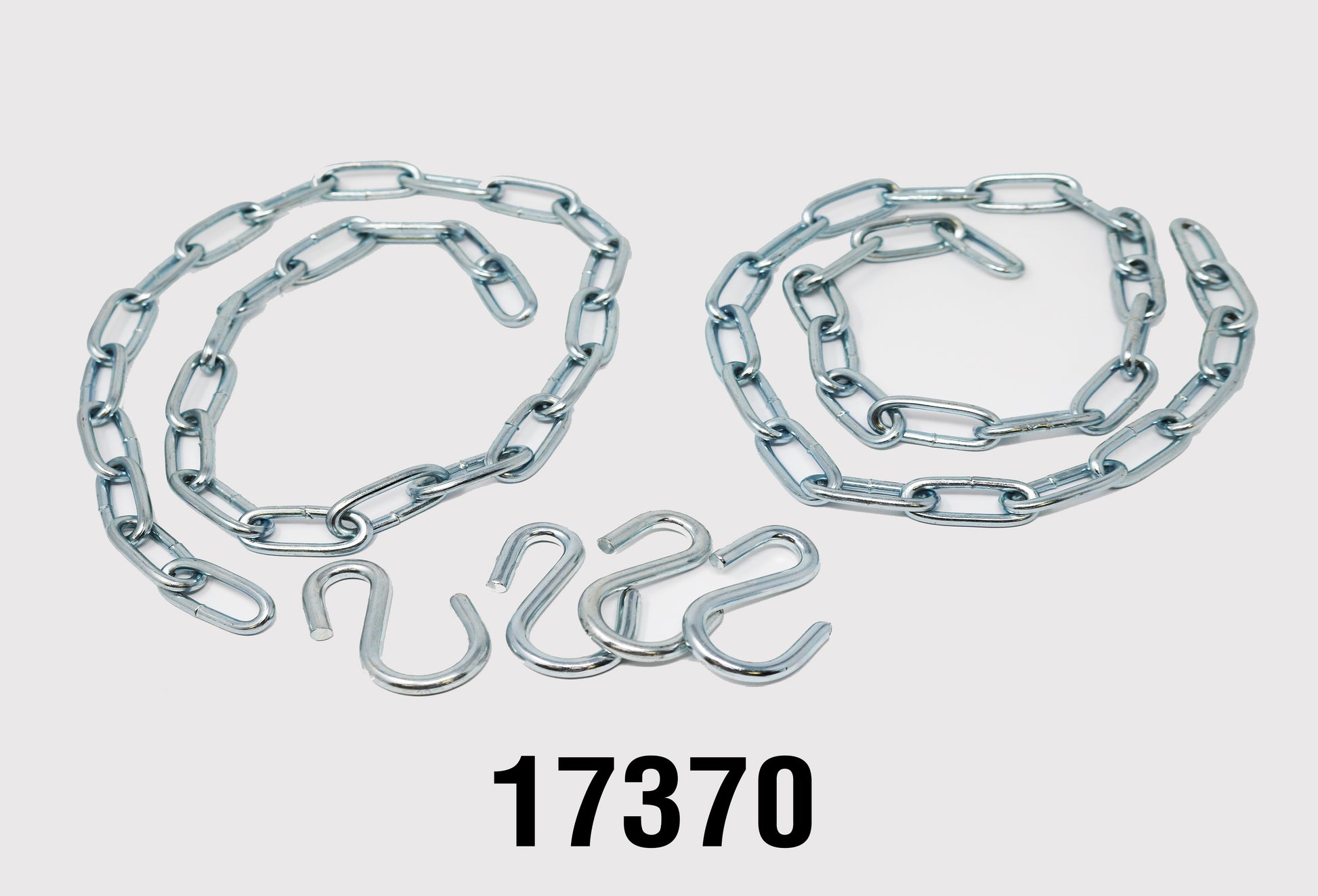

Mounting Height Range: 9ft - 12ft

Clearance to Combustibles: Horizontal: Above 12in; Below 55in; Sides 36in

Venting: Length Min/Max: 2ft - 3ft

Venting: Exhaust: 0ft

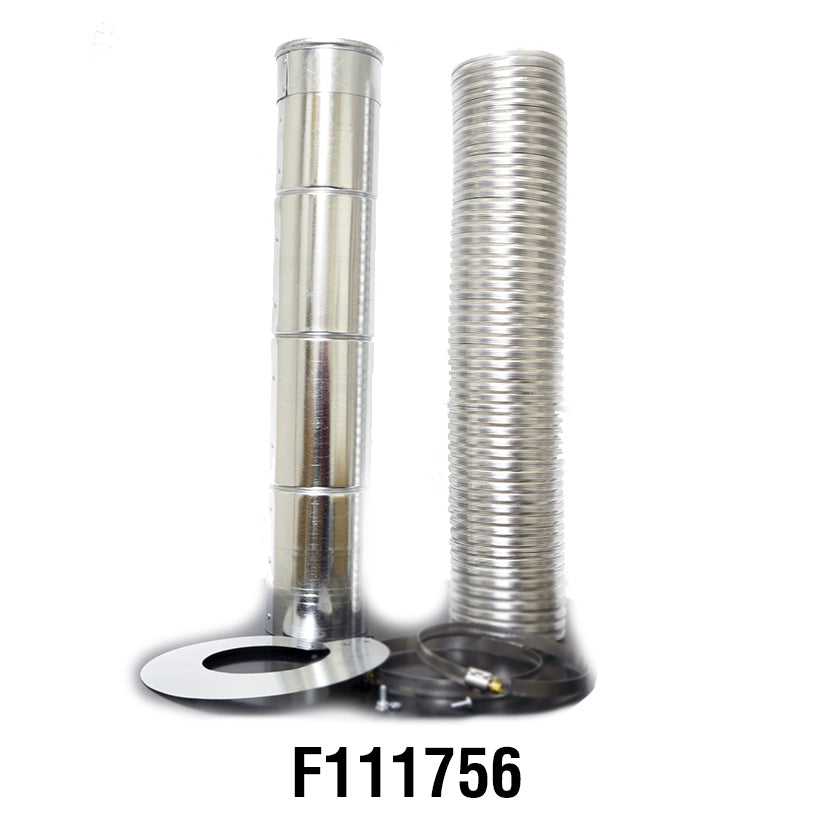

Venting Air Intake: 30ft

Thermostat Optional: Optional

Fuel Type: Propane

Ignition: Hot Surface

Item Weight (lb): 33.9

Warranty: 1 Year Limited

Model: JET25LP
