By HeatStar

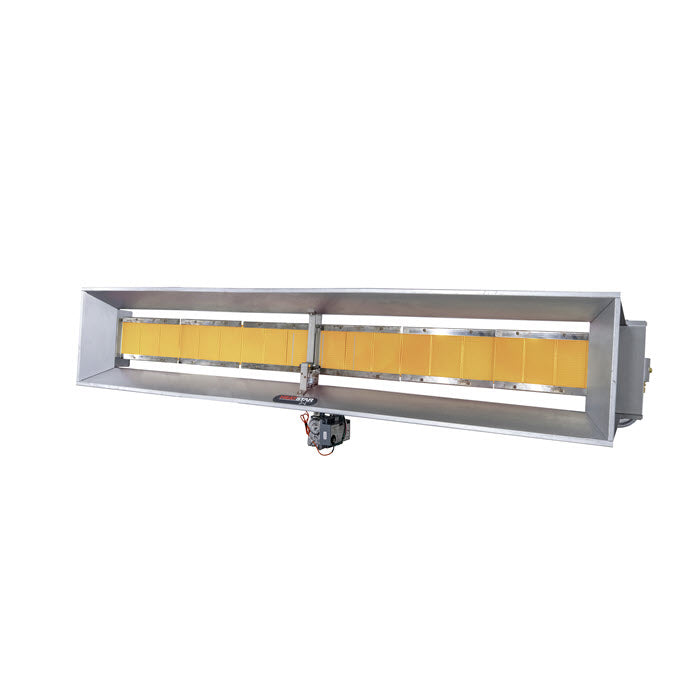

High Intensity Overhead Radiant Power Ignition 9120 Series

Find a Distributor
Regular price $0.00
Regular price $0.00 Sale price $0.00
9120 Series Heaters arrive set up to operate at 120,000 BTU/hr. The box comes with a kit that enables user to convert the BTU setting to 100,000 or 140,000. Infrared Heaters direct line of site radiant heat to floor-level objects, which in turn, heat surrounding air to the desired temperature. High intensity heaters are ideal for use in drafty or windy conditions like a loading dock or auto mechanic bays where doors are open during winter conditions. Dock personnel and objects at floor level will benefit from comfortable warmth like the rays of the sun despite wind and cold. This particular heater uses Power Pile ignition and it is fueled by natural gas. It ships with a thermostat and no electricity or direct venting are required for operation. Heatstar high intensity heaters are protected by a 10 year, pro-rated burner assembly warranty and a limited one year gas control warranty. Consult the user manual for installation instructions and for clearance to combustible guidance.
Availability: Out of stock
SKU: Overhead_9120_Power_Series
Model:
HS9120PPNG / HS9120PPLP
Regular price $0.00
Regular price $0.00 Sale price $0.00

  • Heatstar High Intensity Heaters have multiple outputs per model series
  • Additional burner orifices are included that enables the installer to increase or decrease the output of the heater
  • Spark ignition heaters ship with 40VA transformers

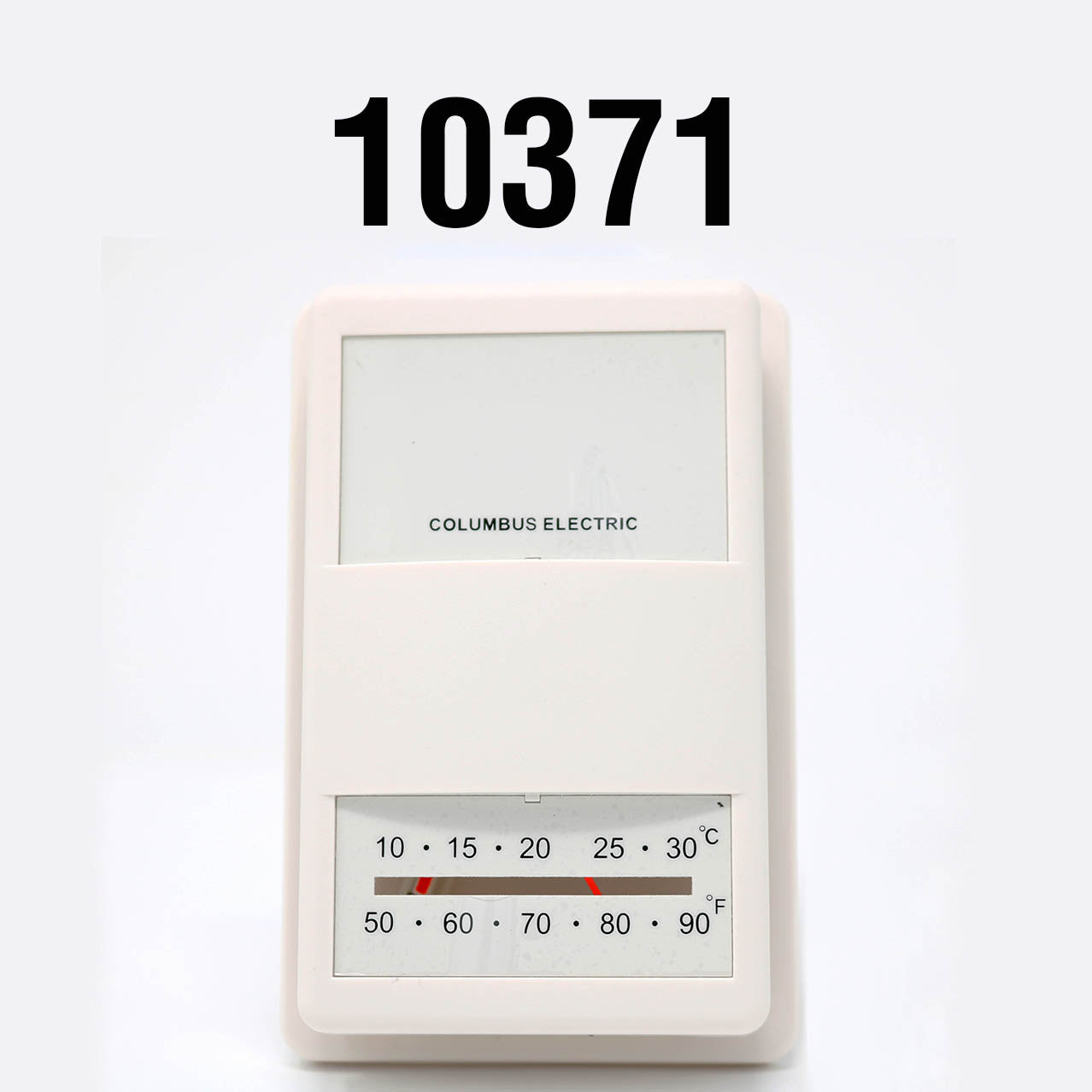

  • Milivolt control heaters shipped with thermostat
  • Non-corrosive materials are used throughout heaters construction

Weight: 61

Fuel Type:
Natural Gas or Propane

Ignition:
Manual

Electrical Rating:
Not Applicable

Electrical Connection:
Not Applicable

Transformer Included:
Not Applicable

Gas Inlet Connection:
1/2in ID FPT

Gas Inlet Pressure Min:
7in WC

Gas Inlet Pressure Max:
14in WC

Mounting Height Range:
18ft plus

Clearance to Combustibles: Horizontal:
Top 46in; Side 46in; Back 46in; Below 114in

Venting Required:
Not Required

Thermostat Optional:
Yes

Item Length (in):
85.5

Item Width (in):
26.75

Item Height (in):
13.123

Item Weight (lb):
68

Warranty: Gas Control:
1 Year Limited

Warranty: Burner:
10 Year Limited Pro-Rated

Model:
HS9120PPNG / HS9120PPLP
