Tube Set - 20ft for JET20

Find a Distributor
$9,200.00
$0.00 $9,200.00

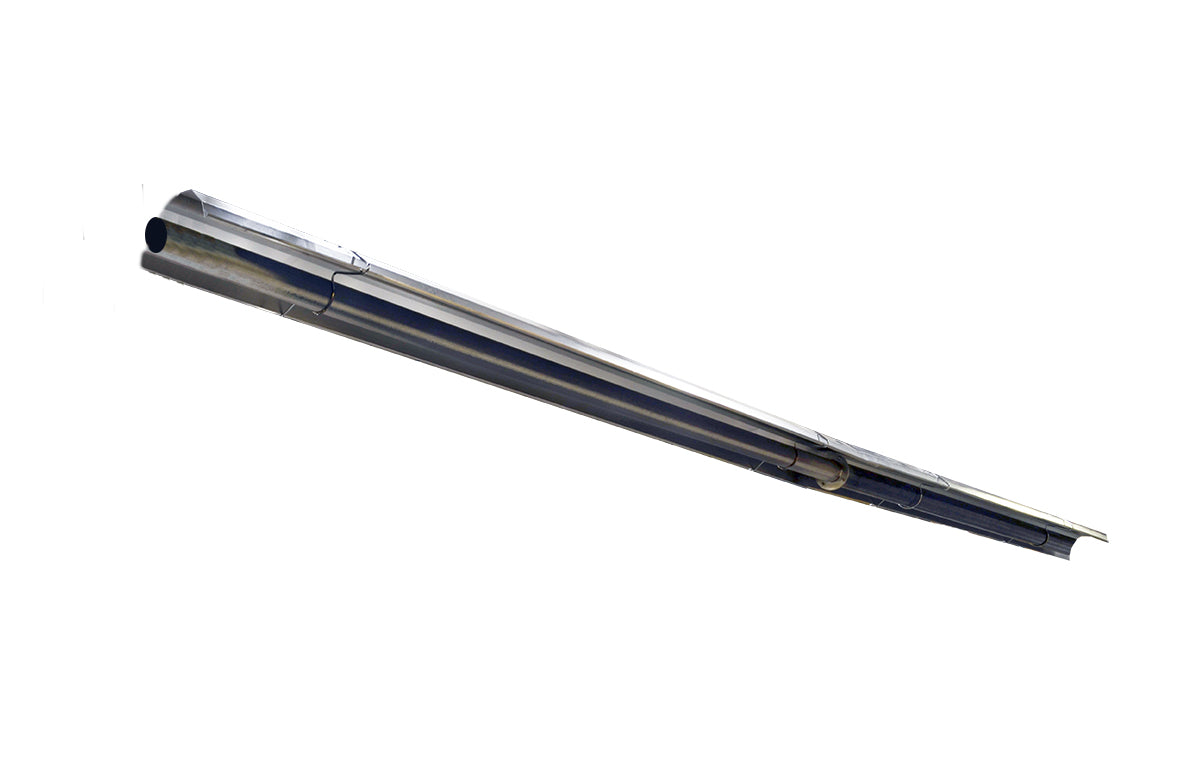

The JET20 is a 20ft tube set intended for use with the JET 80,000 BTU Burner Box. It is uniquely comprised of a 3in round x 10ft aluminized steel first tube, transitioning to a 3.5in round x 10ft hot rolled steel tube for the last 10ft. Combined with the 10ft flame produced by the JET Burner Box, this system provides the most even heat along its 20ft length of any AG heater on the market. JET tube sets come with tubes, polished aluminum reflectors, hangers, couplers, ventcap, drip-line flex gas supply line chains and turbulator.
Availability: Out of stock
SKU: F106020
$9,200.00
$0.00 $9,200.00

  • 16-Gauge 3in Round Tubes, First 10ft
  • 16-Gauge 3.5in Round Tubes, Second 10ft
  • Full Cover Polished Aluminum Reflector
  • 2 Year Limited Warranty
  • Outside or Inside Air for Combustion
  • Installs easily as Straight or U-Tube Configuration

Weight: 112

Item Length (in): 124

Item Width (in): 18

Item Height (in): 12

Item Weight (lb): 85

Tube Diameter: 4in

Venting: Exhaust: 25ft Max

Mounting Height Range : 10ft - 14ft

Warranty: 2 Year Limited
